AURORA LCOM, COM & COM-KH

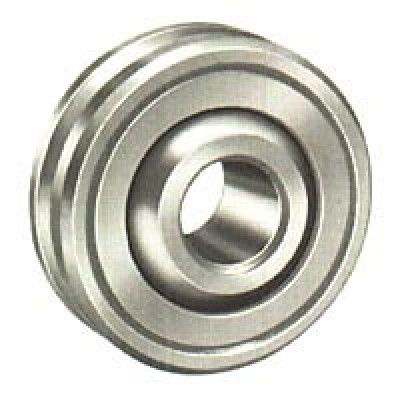

LCOM Series Large Size Spherical Bearings, (Ptfe Liners Available) Outer Member - Carbon steel, protective coated for corrosion resistance. Race - Carbon steel, inside diameter protective coated for corrosion resistance. Ball - Alloy steel, heat treated, hard chrome plated. Ptfe Liners available upon request. Specify by adding suffix "T". Ex.: COM-M8T. (Ptfe Lined spherical bearings have no lubrication holes or groove in race outside diameter.) Aurora P/N SEE DIAGRAM ABOVE Dimensions In Inches Price Buy Heim P/N Heim Price Buy Heim B +.0015 - .0005 D +.0000 -. 0007 H ± .005 W ± .005 O Flat Dia. Ref. M Chamfer Ref. Ball Dia. Ref. a (DEG.) LCOM-3 .1900 .6250 .187 .281 .293 .016 .406 16 $21.90 LS-3 $28.70 LCOM-4 .2500 .7500 .281 .375 .331 .016 .500 14 $15.10 LS-4 $13.75 LCOM-5 .3125 .8750 .313 .437 .448 .016 .625 14 $19.90 LS-5 $22.25 LCOM-6 .3750 1.0000 .375 .500 .516 .016 .719 12 $21.00 LS-6 $23.80 LCOM-7 .4375 1.1875 .437 .562 .586 .032 .812 11 $35.70 LS-7 -- -- LCOM-8 .5000 1.3125 .531 .687 .637 .044 .937 12 $31.30 LS-8 $23.30 COM-KH Series Spherical Bearings, (Ptfe Liners Available) Race - Alloy steel, heat treated, inside diameter protective coated for corrosion resistance. Ball - Alloy steel, heat treated, hard chrome plated. Ptfe Liners available upon request. Specify by adding suffix "T". Ex.: COM-8TKH. (Ptfe Lined spherical bearings have no lubrication holes or groove in race outside diameter.) COM Series Spherical Bearings, (Ptfe Liners Available) Race - Carbon steel, heat treated, inside diameter protective coated for corrosion resistance. Ball - Alloy steel, heat treated, hard chrome plated. Ptfe Liners available upon request. Specify by adding suffix "T". Ex.: COM-8TKH. (Ptfe Lined spherical bearings have no lubrication holes or groove in race outside diameter.) Aurora P/N SEE DIAGRAM ABOVE Dimensions In Inches Price Buy Heim P/N Heim Price Buy Heim B +.0015 - .0005 D +.0000 -. 0007 H ± .005 W ± .005 O Flat Dia. Ref. M Chamfer Ref. Ball Dia. Ref. a (DEG.) COM-3 .1900 .5625 .218 .281 .293 .015 406 11 $8.40 LSS-3 $31.70 COM-3KH .1900 .5625 .218 .281 .293 .015 .406 11 -- -- LHA-3 $15.25 COM-4KH .2500 .6562 .250 .343 .364 .022 .500 13.5 $11.50 LHA-4 $19.50 COM-5 .3125 .7500 .281 .375 .419 .032 .562 12 $8.80 LSS-5 $26.10 COM-5KH .3125 .7500 .281 .375 .419 .032 .562 12 $13.20 LHA-5 Please Call Please Call COM-6 .3750 .8125 .312 .406 .516 .032 .656 10 $9.10 LSS-6 $29.30 COM-6KH .3750 .8125 .312 .406 .516 .032 .656 10 $11.90 LHA-6 $32.60 COM-7KH .4375 .9062 .348 .437 .530 .032 .687 8 $23.20 LHA-7 Please Call Please Call COM-8KH .5000 1.0000 .390 .500 .640 .032 .813 9.5 $14.70 LHA-8 Please Call Please Call COM-9 .5625 1.0937 .437 .562 .710 .032 .906 9.5 $9.50 LSS-9 Please Call Please Call COM-9KH .5625 1.0937 .437 .562 .710 .032 .906 9.5 $14.70 LHA-9 Please Call Please Call COM-10KH .6250 1.1875 .500 .625 .780 .032 1.000 8.5 $17.90 LHA-10 Please Call Please Call COM-12KH .7500 1.4375 .593 .750 .920 .044 1.187 9 $25.30 LHA-12 Please Call Please Call COM-14 .8750 1.5625 .703 .875 .980 .044 1.312 9.5 $19.50 LSS-14 Please Call Please Call COM-14KH .8750 1.5625 .703 .875 .980 .044 1.312 9.5 $46.20 LHA-14 Please Call Please Call COM-16 1.0000 1.7500 .797 1.000 1.118 .044 1.500 10 $23.90 LSS-16 Please Call Please Call COM-16KH* 1.0000 1.7500 .797 1.000 1.118 .044 1.500 10 $51.50 LHA-16 Please Call Please Call * Bore tolerance on these items is as follows: INCH: +.002, -.0005; METRIC: +.064, -.013
